Hall B

You are here:

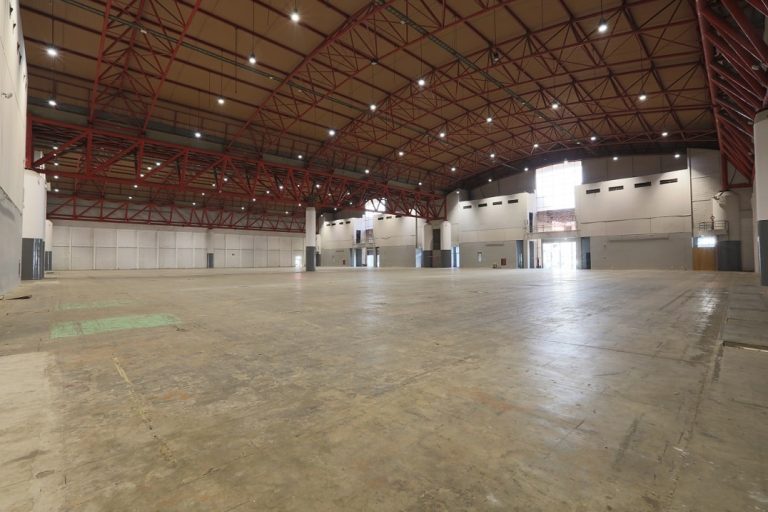

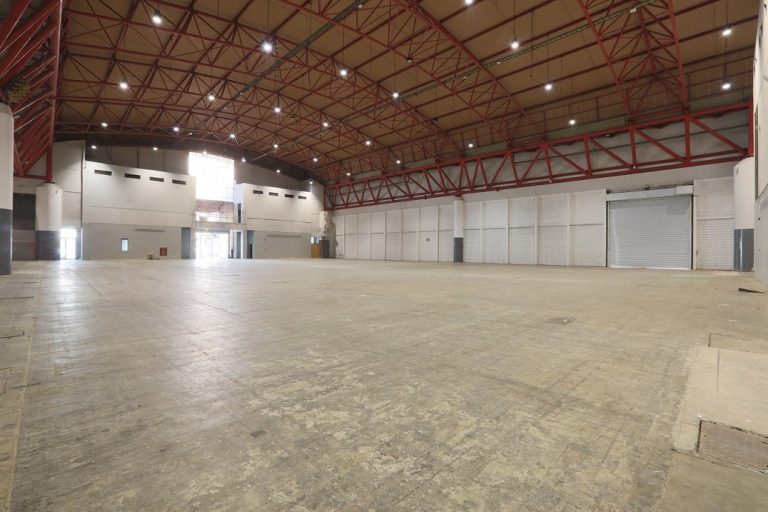

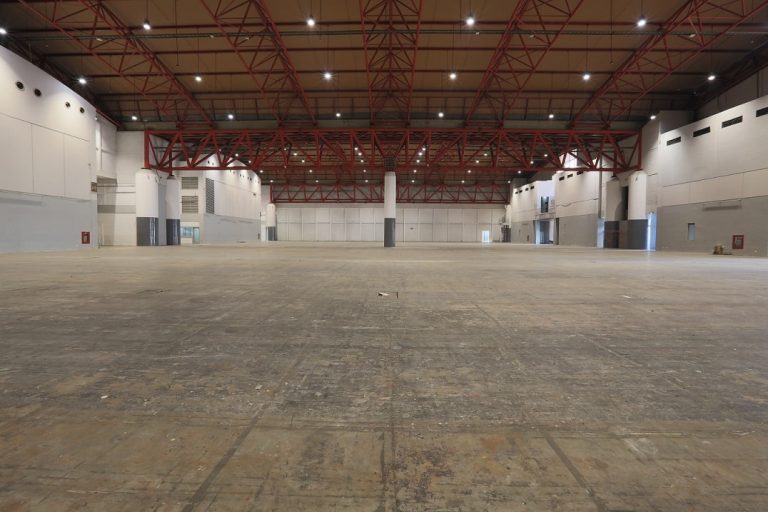

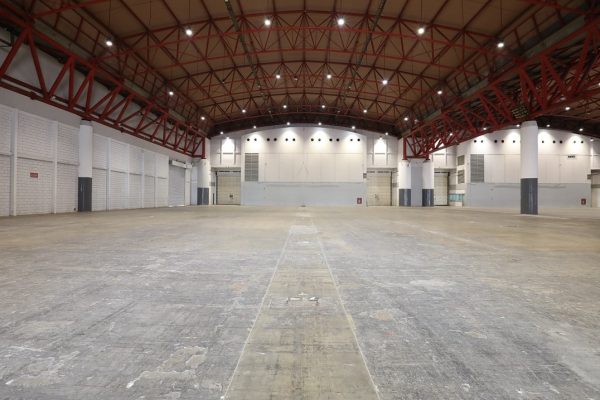

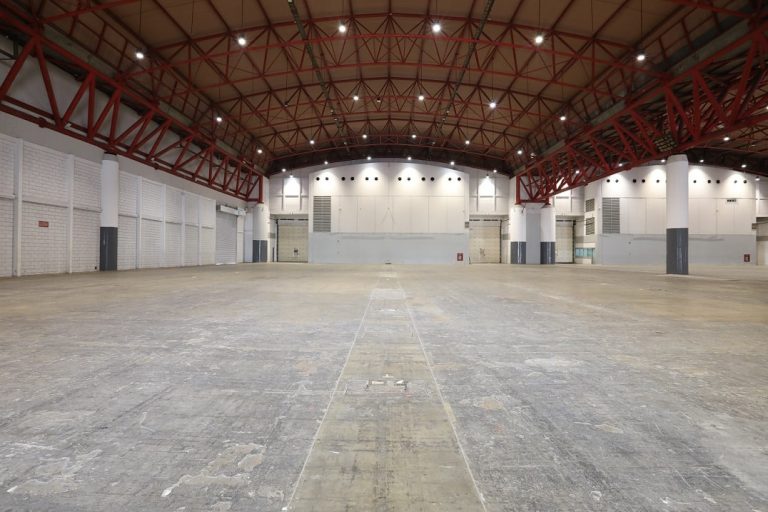

With over 3,994 m2 area, Hall B1 and B2 design is mirroring with hall A1,2,3 which offers a solid concrete based floor and structures for hanging point, these halls are typically used for exhibitions. Connected to Hall C as well as Hall B3 and C3 which creating a block of West Wing area, given another accessibility to expand should you need more spaces and easy access to our outdoor space. Each of our halls feature dedicated organizer offices, individual foyers and entrances and conveniently located washrooms.

FLOOR AREA

3,994 sqm

HEIGHT

8 - 13 m
Capacity Chart Full Hall B
null

THEATRE

0
seats
null

CLASSROOM

0
pax
null

ROUNDTABLE

0
tables
null

FESTIVAL

0
pax

Capacity Chart Partial Hall B

null

THEATRE

0
seats
null

CLASSROOM

0
pax
null

ROUNDTABLE

0
tables
null

FESTIVAL

0
pax
DESCRIPTIONHALL B1 , B2
DIMENSION78 m x 51,2m
FLOOR AREA3,994 sqm
PARTIAL (PER HALL)1,944 sqm/hall
FLOOR STRUCTUREConcrete Slab
ROOF TYPESteel Pipe Arch Truss
ROOF HEIGHT8 - 13 m
FLOOR LOADING2-5 ton / sqm
RIGGING CAPACITY100 kg ( length 8 m ) / point
LOADING DOORS1 door (B1)
5,7m (W) & 6m (H)
ELECTRIC POWER SUPPLY380/220v
50 Hz, 3 Phase
ELECTRIC POWER CAPACITY1,430 kva
FIRE PROTECTIONFire Hydrant, Portable Fire Extingguisher, Fire Extinguisher Trolley

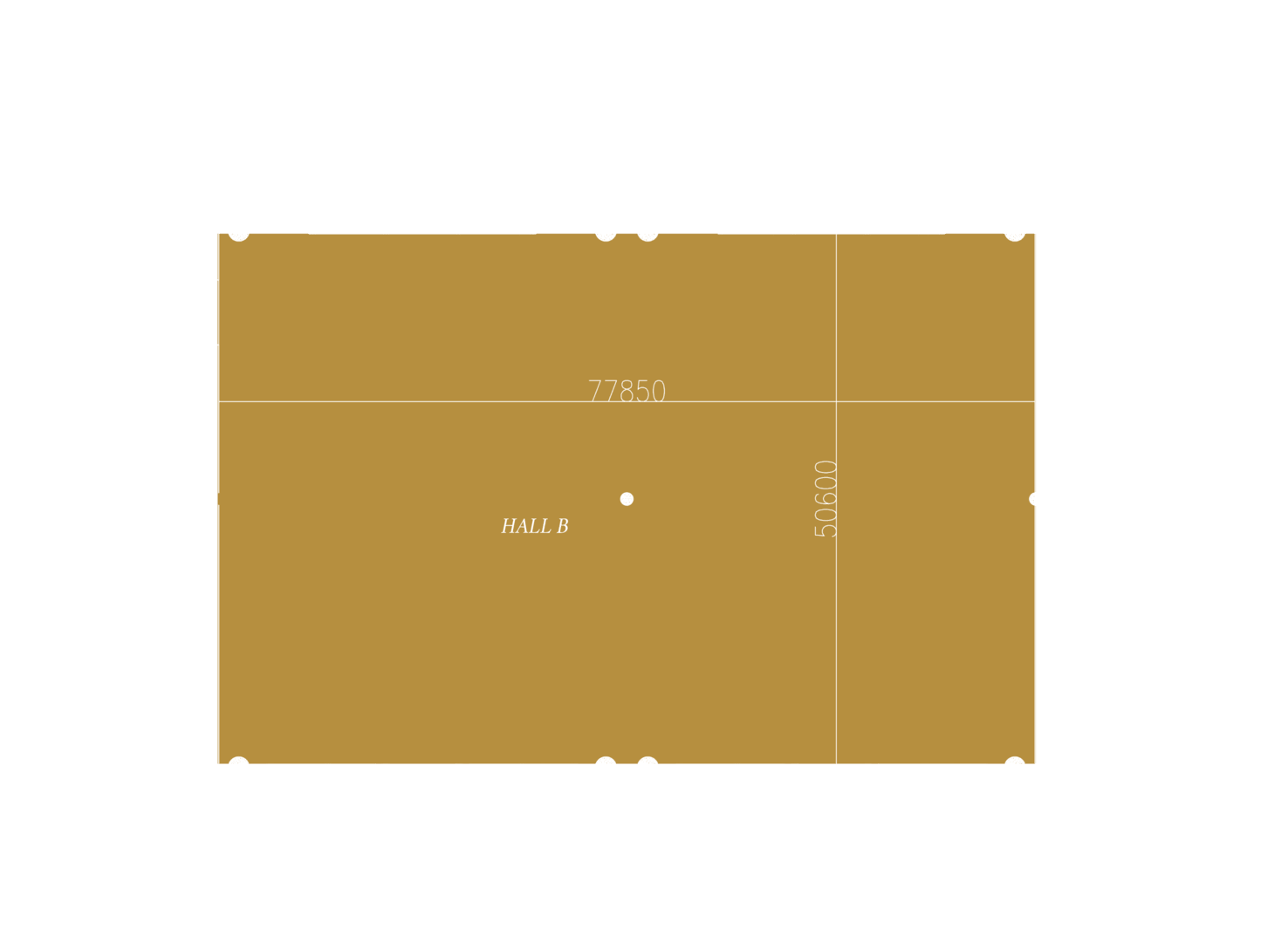

Floor Plan

Ground Floor

Block Plan

Emergency Evacuation Route

Ground Floor

Mezzanine 1st Floor

Technical Drawing

Technical Drawing
